GG&G, INC. M1A SOCOM II QUICK DETACH SCOPE MOUNT

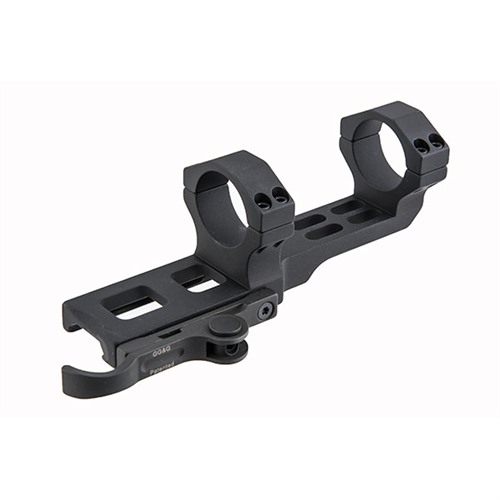

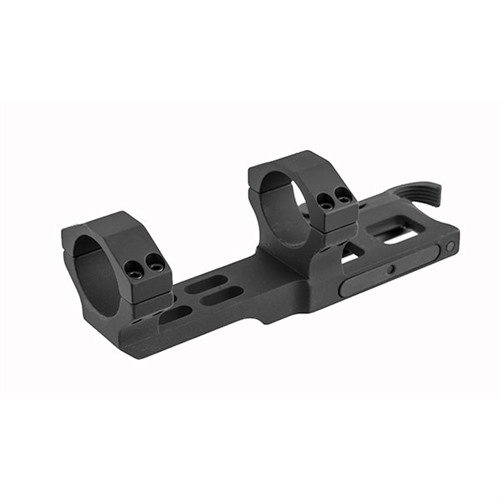

M1A SOCOM II QD Scope Mount

The SOCOM II M1A Rifle is a compact, powerful close quarter combat battle rifle. However its "Cluster Rail" system makes it difficult to mount a conventional low powered scope. Další...

Produkt č.: 336000052 813157003745 336000052
The SOCOM II M1A Rifle is a compact, powerful close quarter combat battle rifle. However its "Cluster Rail" system makes it difficult to mount a conventional low powered scope. You have to install an additional receiver mounted scope base to the SOCOM II along with a set of scope rings that are tall enough so that the objective lens clears the top rail. If you want Quick Detach capability, you need to mount your scope on top of the receiver mounted scope base with some type of QD mount and ring combo. We think that's a PIA and has too many interface points that could negatively affect the zero retention of your scope. The New Products Team at GG&G has come up with an innovative solution---The SOCOM II Accucam Quick Detach Scope Mount With 30mm Integral Rings: The Accucam Quick Detach System provides quick and easy on-off transitions while maintaining 1/2 MOA accuracy. Accucam QD System is fully adjustable to fit worn or out of spec dovetails. The SOCOM II Accucam Quick Detach Scope Mount has dual recoil lugs that interface with the recoil slots of the top dovetail rail to provide secure recoil resistance. The scope mount has 30mm integral rings with four cap screws per ring. Each cap screw threads into stainless steel helicoils. The cantilever feature of the SOCOM II Scope Base overhangs 3" to allow for additional forward/rearward adjustment for scopes with different eye reliefs. The underside of the SOCOM II QD Scope Mount is relief cut for unimpeded cartridge ejection.

SPECS: 2.5" measurement inside ring face to inside ring face allows for forward/rearward adjustment of different eye releif scopes. 1.260" from top of the rail to center of 30mm integral rings, provides lower scope mounting while still clearing the objective lens of most scopes up to 50mm. Manufactured from 6061-T6 Billet Aluminum. Type III Hard Anodized. All Steel components are 4140 Ordnance Steel. length: 6". Weighs 7.7 oz.

GG&G, INC.
7110 7110 1 CZK
336000052
M1A SOCOM II QD Scope Mount
Číslo výrobce: GGG1433 813157003745 SOCOM II M1A puška je kompaktní a výkonné úzké čtvrtletí Bojové útočná puška. Nicméně svůj systém "Cluster Rail" je obtížné připojit konvenční nízké napájení rozsahu. Budete muset nainstalovat další přijímač připojený rozsah základna SOCOM II spolu s řadou rozsah kroužků, které jsou dostatečně vysoké, aby objektiv vymaže horní lišty. Pokud chcete rychlé odpojení funkce, je třeba připojit váš obor horní přijímač připojený rozsah základna s nějakým typem QD mount a prsten combo. Myslíme si, že je moduly PIA a obsahuje příliš mnoho bodů rozhraní, které by mohly negativně ovlivnit nulové uchovávání vašeho oboru. Nové produkty tým na GG & G má přijít s inovativní řešení---The SOCOM II Accucam rychlé odpojení rozsah Mount s integrální kroužky 30mm: Accucam rychle odpojit systém umožňuje rychlé a snadné-off přechody při zachování 1/2 MOA přesnost. Accucam QD systém je plně nastavitelný, aby se vešly opotřebované nebo ze spec zapadá. SOCOM II Accucam rychlé odpojení rozsah Mount má dvojí zaleknout oka rozhraní s vratnou sloty kolejnice horní Rybiny poskytovat bezpečné zaleknout odpor. Rozsah montáž má integrální kruhy 30mm se čtyřmi šrouby za prsten. Každý šroub vlákna do nerezové oceli helicoils. Funkci konzolový SOCOM II Rozsah základna převisy 3" pro dodatečnou úpravu dopředu/dozadu pro obory s jinýma očima reliéfy. Spodní část SOCOM II QD rozsah Mount je odlehčení pro nerušený kazeta vysunutí.
7110 CZK 3 7 110,00 Kč *

Skladem v USA 3 ks
Doba dodání 7 - 21 dní
Vlastnosti: Finish: Black Make: Springfield Model: M1A Style: Rychle odepínací

Atributy

Finish: Black Model: M1A Style: Rychle odepínací Udělat: Springfield

Detail produktů

Made in USA
US exportní klasifikace: 0A501.y.2.



The SOCOM II M1A Rifle is a compact, powerful close quarter combat battle rifle. However its "Cluster Rail" system makes it difficult to mount a conventional low powered scope. You have to install an additional receiver mounted scope base to the SOCOM II along with a set of scope rings that are tall enough so that the objective lens clears the top rail. If you want Quick Detach capability, you need to mount your scope on top of the receiver mounted scope base with some type of QD mount and ring combo. We think that's a PIA and has too many interface points that could negatively affect the zero retention of your scope. The New Products Team at GG&G has come up with an innovative solution---The SOCOM II Accucam Quick Detach Scope Mount With 30mm Integral Rings: The Accucam Quick Detach System provides quick and easy on-off transitions while maintaining 1/2 MOA accuracy. Accucam QD System is fully adjustable to fit worn or out of spec dovetails. The SOCOM II Accucam Quick Detach Scope Mount has dual recoil lugs that interface with the recoil slots of the top dovetail rail to provide secure recoil resistance. The scope mount has 30mm integral rings with four cap screws per ring. Each cap screw threads into stainless steel helicoils. The cantilever feature of the SOCOM II Scope Base overhangs 3" to allow for additional forward/rearward adjustment for scopes with different eye reliefs. The underside of the SOCOM II QD Scope Mount is relief cut for unimpeded cartridge ejection.

SPECS: 2.5" measurement inside ring face to inside ring face allows for forward/rearward adjustment of different eye releif scopes. 1.260" from top of the rail to center of 30mm integral rings, provides lower scope mounting while still clearing the objective lens of most scopes up to 50mm. Manufactured from 6061-T6 Billet Aluminum. Type III Hard Anodized. All Steel components are 4140 Ordnance Steel. length: 6". Weighs 7.7 oz.
