Atributy
- Caliber:
308 Winchester
- Die Style:
Bushing Neck Sizing Die
- Závit:
7/8
- Dodací hmotnost: 1kg
- Výška přepravy: 100mm
- Šířka přepravy: 100mm
- Délka přepravy: 100mm
Produkt č.: EU2015462
Výrob. č.: 3299651

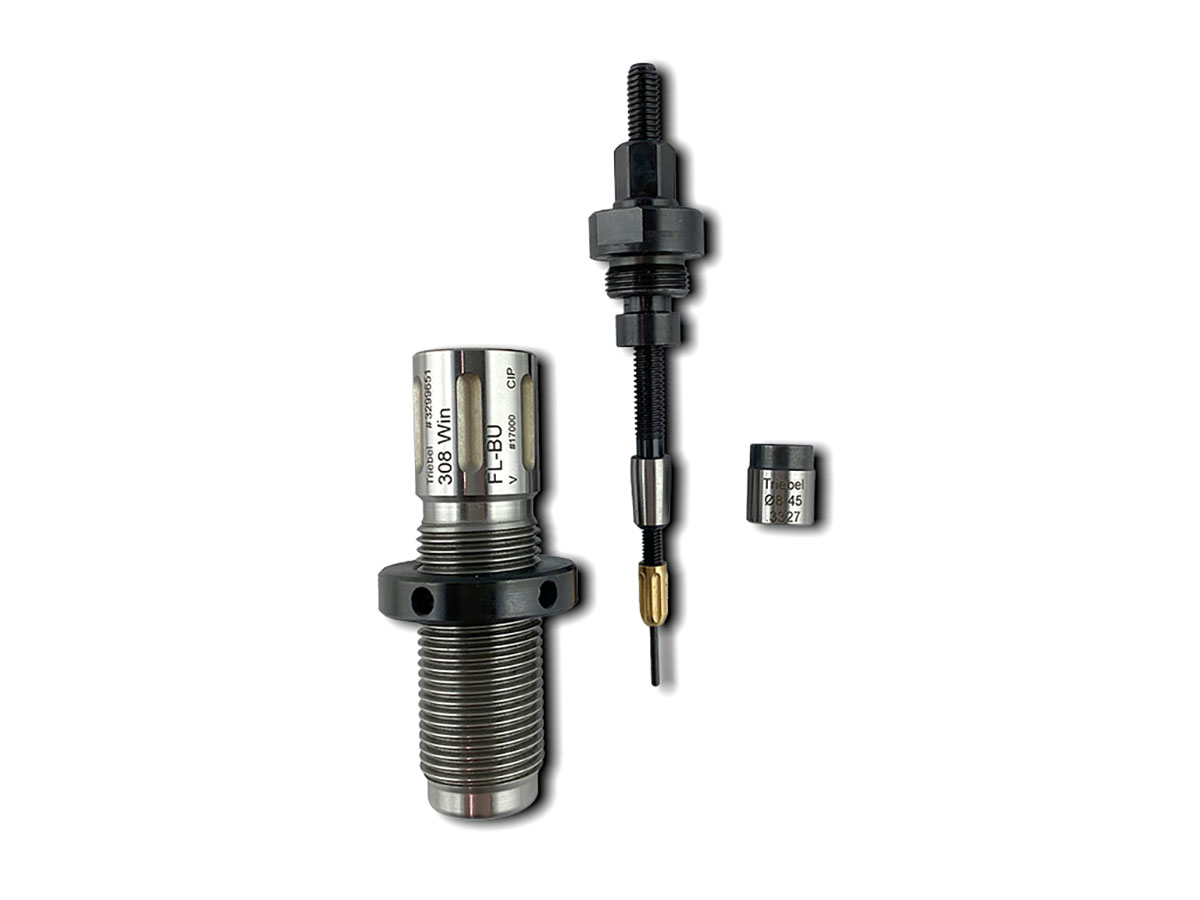

Full Length Die with Interchangeable Neck Sizing Ring The FL die is used to size the cartridge case on full length. In this version, the case neck is not sized directly inside the die body but by an interchangeable neck sizing ring (bushing). By changing bushing, the amount of neck sizing can be varied. It consists of the solid die body, the interchangeable neck sizing ring (bushing), and the spindle with expander and decapping pin. The die body is hardened, and the interior profile is mirror-polished. The precision-ground seat for the neck sizing ring ensures an accurate fit. The HK ring is made of tool steel, hardened and finely ground. The expander is also made of tool steel, hardened and finely ground. The complete spindle can be removed upwards, so no readjustment is necessary when reinstalling. Full-length sizing of the cartridge case from base to shoulder takes place when the case is pushed into the die. The case neck is sized on the outside by the installed bushing. Neck sizing from the inside takes place as the case is withdrawn from the die. This restores the case’s loadability and achieves a consistent and secure bullet seating. The correct position of the die in the press is set with the lock nut. All relevant components, including bushings in different sizes, have an article number for easy reordering if necessary. You will find further instructions and assistance in selecting accessories and spare parts in the manual. Subdomain: Bedienungsanleitung.triebel-guntools.de
Bude pořízeno od dodavatele po vaší objednávce
Doba dodání cca 3-4 měsíců
Die 7/8, Full Length Die s bushing pro 308 Winchester od značky TRIEBEL je ideální volbou pro každého, kdo hledá dokonalé výsledky při přebíjení nábojnic.
Full Length Die s vyměnitelným neck sizing ring (bushing) umožňuje přizpůsobit velikost krčku nábojnice bez nutnosti měnit celý die. Tento systém nabízí flexibilitu a variabilitu v procesu přebíjení.
Celkové plné zpracování nábojnice od základny po rameno probíhá při zasunutí do die. Krček nábojnice je tvarován zvenčí pomocí nainstalovaného bushingu. Při vytažení nábojnice z die dochází k vnitřnímu tvarování krčku, což obnovuje použitelnost nábojnice a zajišťuje konzistentní a bezpečné usazení střely.
Správná pozice die v lisu je nastavena pomocí zajišťovací matice. Všechny relevantní komponenty, včetně bushingů v různých velikostech, mají výrobní číslo pro snadné opětovné objednání v případě potřeby.
Další pokyny a pomoc při výběru příslušenství a náhradních dílů naleznete v manuálu.
Pro více informací navštivte naši stránku s manuály.
