Atributy
- Model:
70
- Typ zbraně:
Winchester
- Dodací hmotnost: 0,159kg
- Výška přepravy: 30mm
- Šířka přepravy: 56mm
- Délka přepravy: 150mm
- UPC: 050806008335
Produkt č.: 080097170
050806008335 Nástroj s pružinovým mechanismem poskytuje stálý, rovný tlak vzad, aby udržel zámkové výčnělky kolmo k přijímači během lapování s abrazivním materiálem o zrnitosti 600 až 800, silikonovým karbidem. Poskytuje lepší výsledky než pouhý tlak prstem. Vyměnitelné závitové manžety pasují na populární akce uvedené níže.Předbjednávka, dodací lhůta je přibližně 4-12 týdny ze skladu z USA.

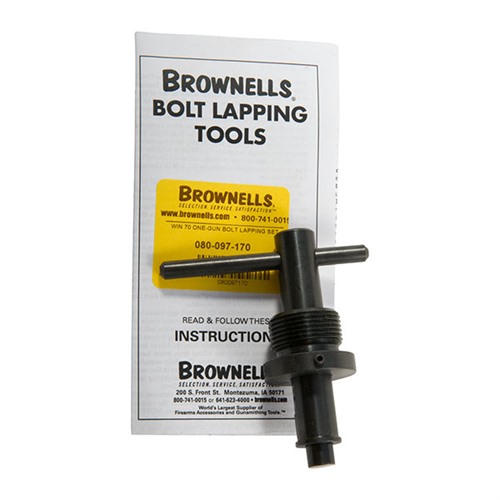

BOLT LAPPING TOOLS, 2-PIECE BOLT LAPPING KIT FOR WINCHESTER 70 od značky BROWNELLS je ideálním nástrojem pro precizní úpravy závěrů vaší pušky.
Naše spring-loaded tool poskytuje konstantní, přímý tlak, který udržuje závěry čtvercové vůči přijímači během lapování s abrazivem o zrnitosti 600 až 800. Tento nástroj přináší lepší výsledky než pouhý tlak prstu. Vyměnitelné závitové rukávy se hodí pro populární akce uvedené níže.
M14/M1A Set rukáv obsahuje plunžer velkého průměru a speciální rukojeť pro lapování potřebnou pro tyto modely. Rukáv Mauser Large je vhodný pro akce s velkým kroužkem Mauser. Rukáv Mauser Small se hodí pro akce s malým kroužkem Mauser. Rukáv Savage Small je určen pro akce Savage ve všech rážích kromě Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) a Win Short Mag (WSM). Rukáv Savage Large se hodí pouze pro akce Savage v rážích RUM, RSUM a WSM.
Jeden Gun Set obsahuje tělo nástroje na závěr, plunžer a správnou velikost rukávu pro uvedený model. M14/M1A One Gun Set obsahuje tělo nástroje na závěr, plunžer velkého průměru, správnou velikost rukávu a speciální rukáv, a speciální nástroj na lapování závěrů, který je unikátní pro M14/M1A/M1 Garand. Kit obsahuje všechny nástroje potřebné k lapování všech modelů uvedených v tabulce.
* Speciální cena, viz níže.
70
Winchester
Very nice fit of parts. 31.8.2015
I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.
Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.
I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.
Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.
