ASF-50Q is a short throw (rotate to 50 degree for FIRE/SEMI) semi auto selector with q (offset) levers. ASF (Ambidextrous Selector, Forward Controls) and SOLGW’s "The Quick" is a joint project between FCD and SOLGW. ASF was designed from the ground up to be a defense/duty/combat safety selector, its mission is quite aptly reflected by the way its levers are attached the center, via a stainless steel roll pin. The lever to center interface is immensely strong, the high shear strength (800 lbs) 420 stainless steel spring steel roll pin simply holds the two in place, and doesn't handle any load. One of the design goals dictates there be no wobble between the lever and center, Forward Controls Design called for very tight tolerances (+0.001/-0.00) on ASF's lever and center interface to achieve that. Q levers are offset levers, by shifting the lever closer to the shooter's thumb when the selector is on SEMI/FIRE, it enables the user to more easily rotate it back to SAFE without shifting his grip. For that reason, q levers are side specific, the q lever's "leg" should always be biased towards the top. With the selector on SEMI/FIRE, the q lever should look like a letter q (hence its name). Forward Controls Design are known to many for the dimpled pattern they use on some control surfaces (AA, or All Angles, is the designation). ASF levers are serrated, not dimpled. As the lever rotates, the user’s finger slides on the lever, anything but serrations along the length of the lever only impedes that movement and creates friction for no benefit. Serrations diagonal or perpendicular to the length of the lever are similarly unhelpful. Serrations parallel to the lever's length help mitigate lateral movement, and do not impede the finger's sliding motion. ASF lever's profile isn't square, its outer most portion is somewhat tapered for a reason. When the user’s hand holds the pistol grip, the profile of the ASF lever conforms to angle of the thumb's pad. For friends and customers that wish to see dimples on the ASF, there is a single dimple on both sides to function as a position indicator (in lieu of a pointer), it’s elegant and simple. ASF is shipped with a selector spring, a KNS nitrided selector detent, two levers (or one lever, with an end cap), 4 roll pins (two for installation with 2 spares). ASF centers are billet machined in 8620, heat treated and black nitrided. Levers are billet machined in 8620 and black nitrided. ASF is a collaboration with Sons of Liberty Gunworks. Made in the USA.
Vynikající ambidextrní bezpečnostní selektor pro AR-15
AR-15 AMBI SAFETY SELECTOR W/ OFFSET, SEMI AUTO AMBI 50 DEGREE SELECTOR WITH Q LEVERS od značky FORWARD CONTROLS DESIGN je navržen pro maximální funkčnost a pohodlí při použití.
Popis produktu
ASF-50Q je krátký selektor s otočením na 50 stupňů pro režim FIRE/SEMI, který obsahuje q (offset) páčky. Tento ambidextrní selektor je výsledkem spolupráce mezi Forward Controls a SOLGW, známý jako "The Quick".
ASF byl navržen od základů jako bezpečnostní selektor pro obranu, službu a boj. Jeho konstrukce je pevně spojena s centrem pomocí nerezového válcového kolíku, což zajišťuje vysokou odolnost proti zatížení (800 lbs). Toleranční hodnoty pro rozhraní páčky a centra byly navrženy s velkou přesností (+0.001/-0.00), aby se eliminovalo jakékoliv kolísání.
Funkce Q páček

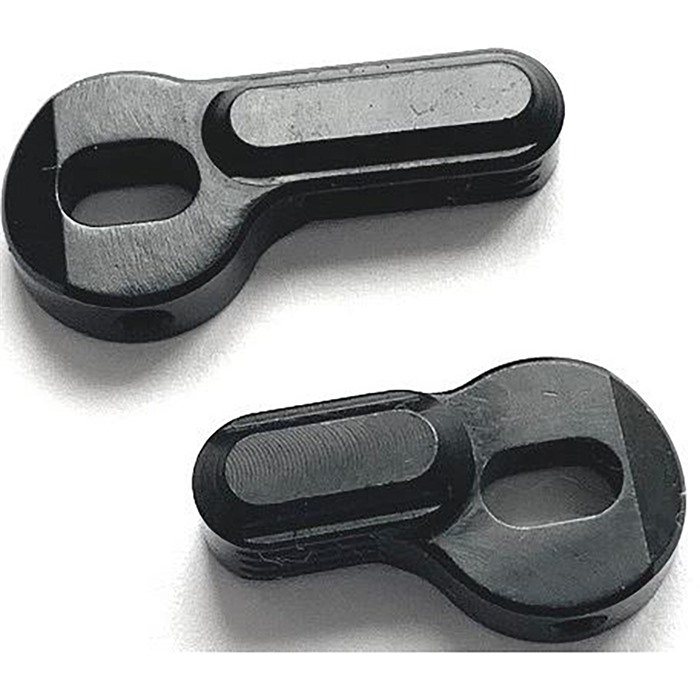

Q páčky jsou offset páčky, které umožňují uživateli snadněji přepnout zpět na SAFE bez nutnosti měnit úchop. Při přepnutí na SEMI/FIRE by q páčka měla vypadat jako písmeno "q".
Design a ergonomie
- Páčky ASF jsou vroubkované, nikoli prohloubené, což zajišťuje lepší kontakt s prsty.
- Profil páčky není čtvercový, ale mírně se zužuje, aby lépe odpovídal úhlu palce uživatele.
- Na obou stranách je jediná prohlubeň jako indikátor polohy.
Obsah balení
ASF je dodáván se selektorovou pružinou, nitridovaným selektorovým detentem KNS, dvěma páčkami (nebo jednou páčkou s koncovým víčkem) a čtyřmi válcovými kolíky (dva pro instalaci a dva náhradní).
Materiály a výroba
ASF centra jsou vyrobena z billet z 8620, tepelně upravena a černě nitridována. Páčky jsou také vyrobeny z billet z 8620 a černě nitridovány. Tento produkt je výsledkem spolupráce se Sons of Liberty Gunworks a je vyroben v USA.
