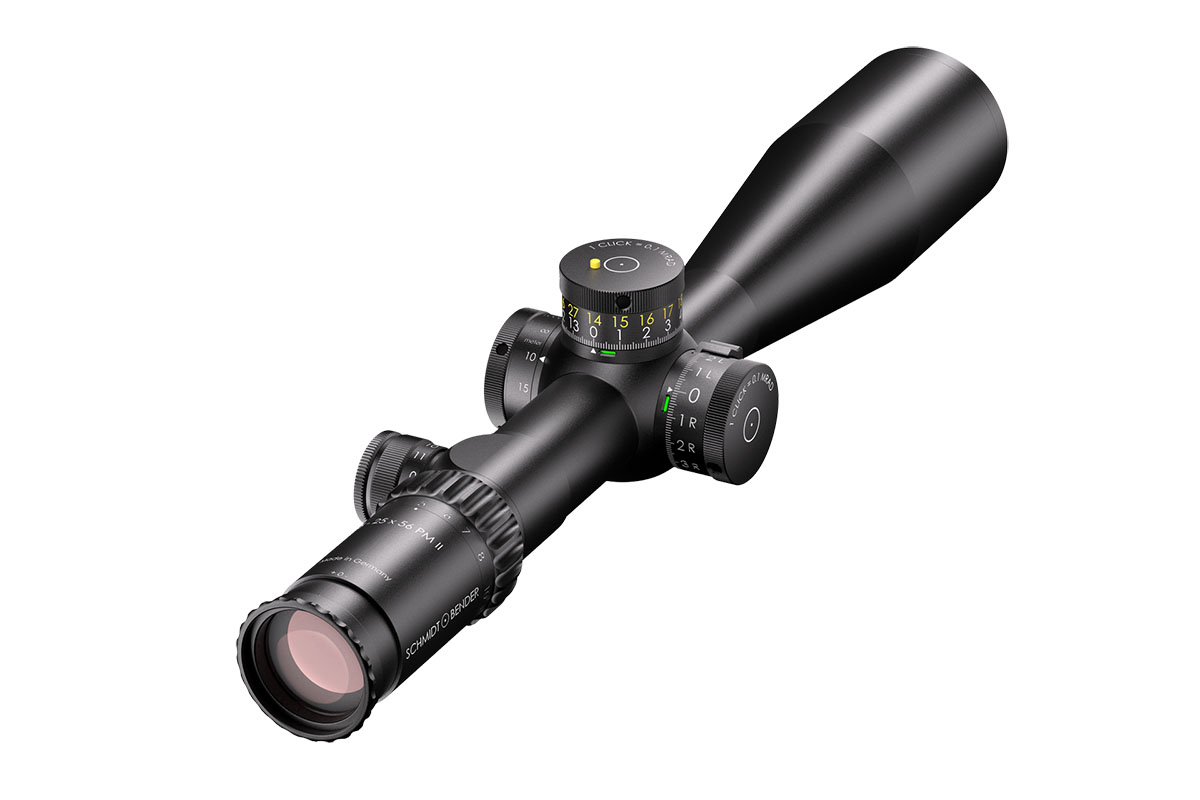

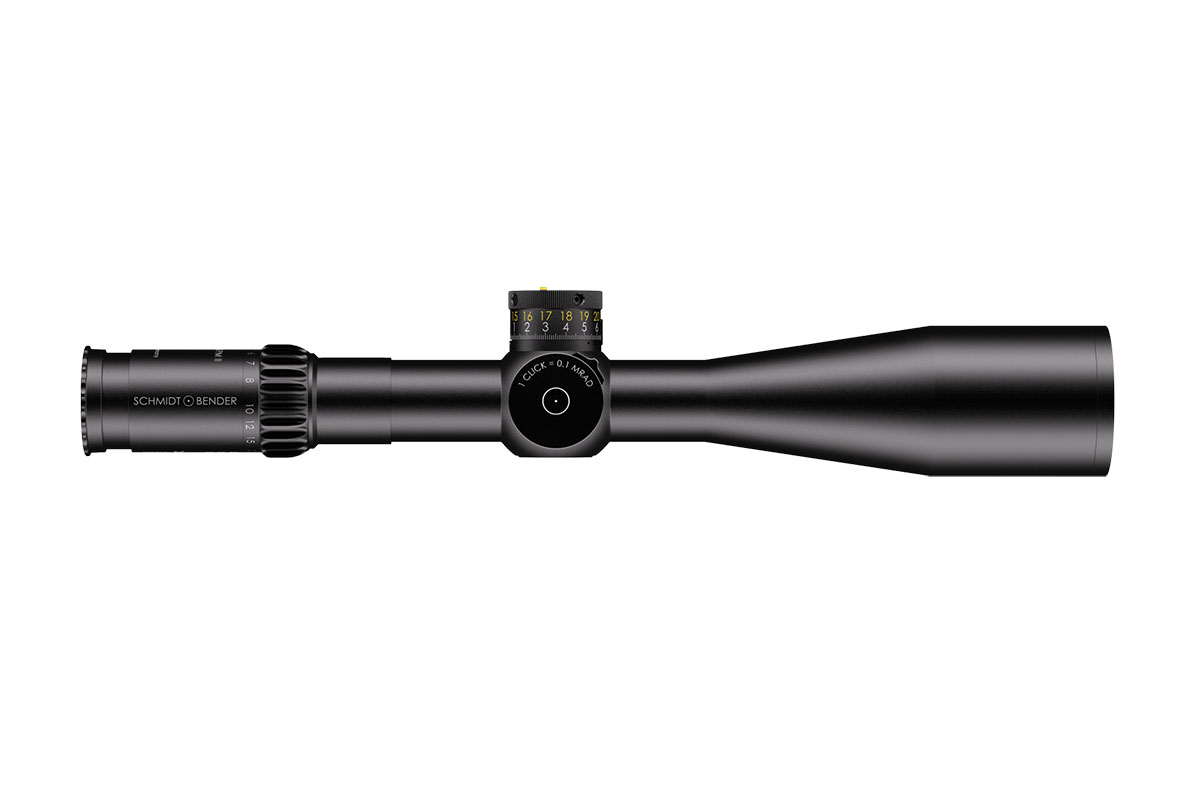

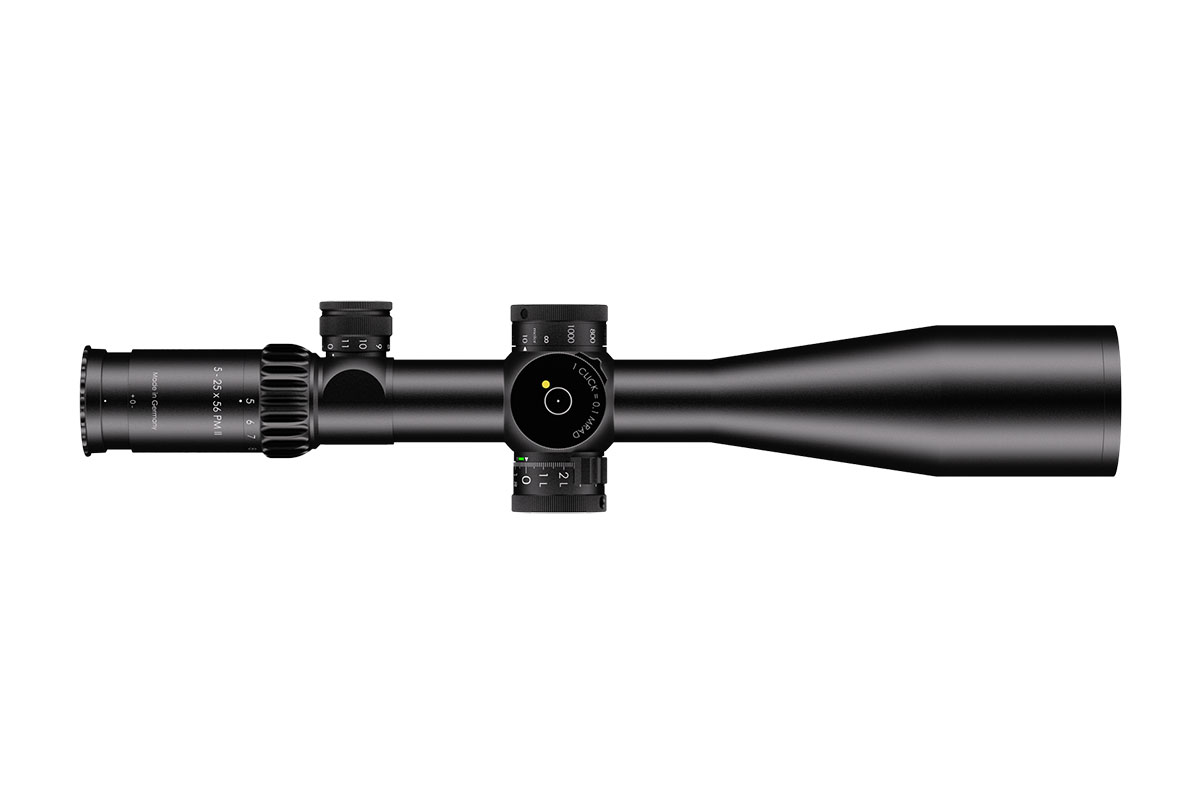

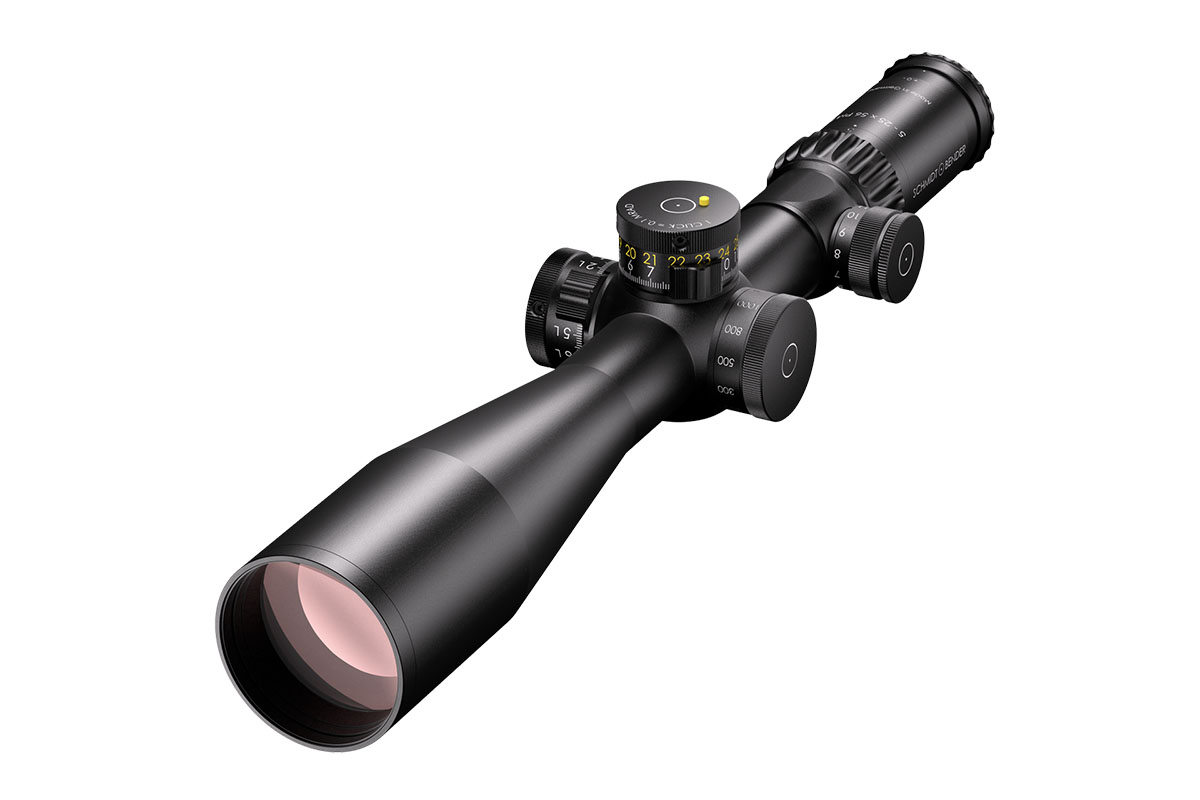

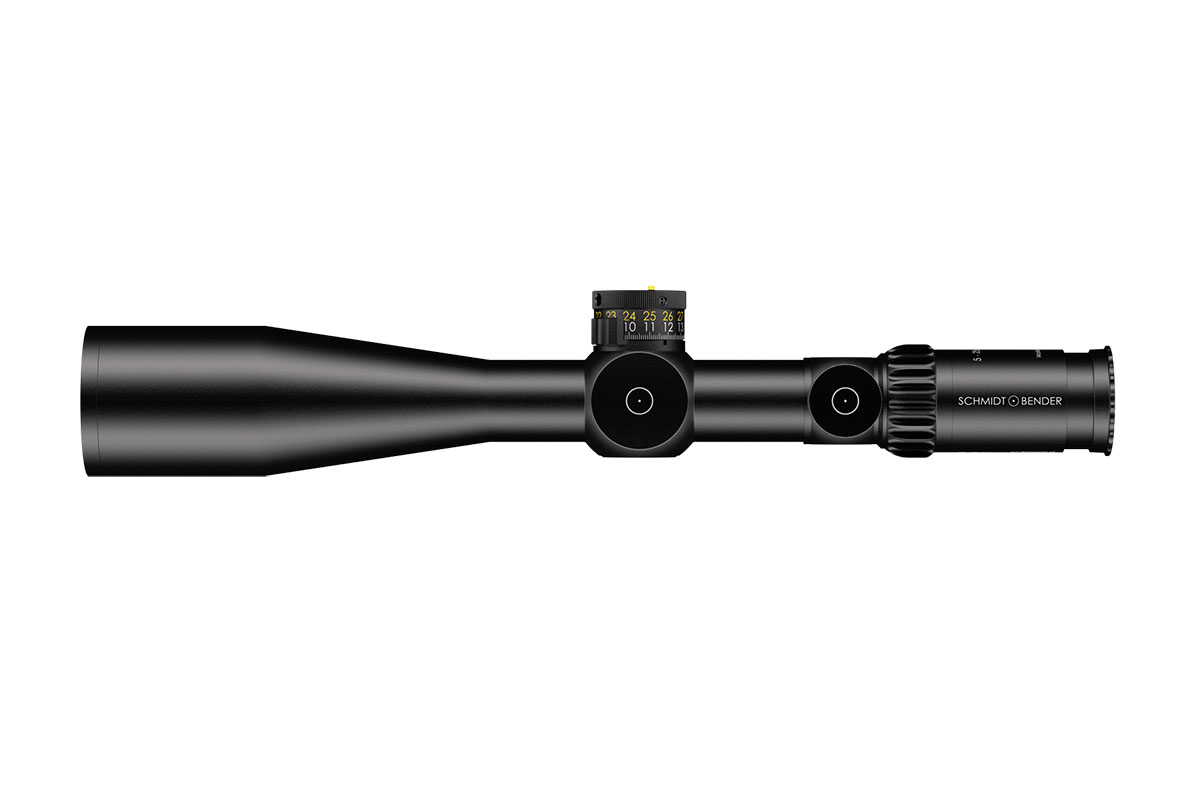

The 5‑25×56 PM II from Schmidt and Bender stands at the pinnacle of variable‑magnification tactical optics, engineered for long‑range precision, outstanding clarity and professional‑level reliability. With a wide 5–25× zoom range and a substantial 56 mm objective lens, it delivers exceptional light‑gathering capability, enabling crisp, bright imagery even at extended distances.
Built upon a rugged 34 mm main tube, the scope accommodates large internal adjustment ranges and is designed for demanding use. It features a reticle in the first focal plane (FFP) so that scale and hold‑offs remain accurate at any magnification. The field of view spans approximately 5.3–1.5 m at 100 m, while the exit pupil ranges around 11.0–2.3 mm, and the eye relief remains generous at around 90 mm. The parallax adjustment typically extends from 10 m to infinity, enabling accurate focus from very close ranges through to extreme distances.
The turret system is engineered for precision: click values as fine as 0.1 mrad (≈1 cm at 100 m) are available, and a double‑turn elevation turret combined with single‑turn windage allows vast usable correction ranges for wind and elevation. Optical transmission exceeds 90 %, and the construction is nitrogen‑filled, fog‑ and waterproof, ensuring full reliability in all climatic conditions.
Key Specifications:
Magnification: 5–25×
Objective Lens Diameter: 56 mm
Main Tube Diameter: 34 mm
Field of View: approx. 5.3–1.5 m @100 m
Exit Pupil: approx. 11.0–2.3 mm
Eye Relief: approx. 90 mm
Parallax Adjustment: from ~10 m to infinity
Click Value: approx. 0.1 mrad (≈1 cm at 100 m)
Optical Transmission: > 90 %
Crafted in Germany to the highest standards, the 5‑25×56 PM II is the go‑to choice for military, law‑enforcement and competition shooters who demand absolute clarity, mechanical integrity and extreme flexibility in one optic.
Vynikající optika pro dlouhé vzdálenosti s precizním výkonem
5–25×56 PM II od značky Schmidt a Bender představuje špičku v oblasti variabilních taktických optik, navrženou pro dlouhé vzdálenosti s precizností, vynikající jasností a profesionální spolehlivostí. S širokým rozsahem zoomu 5–25× a výrazným objektivem o průměru 56 mm nabízí výjimečné schopnosti shromažďování světla, což umožňuje ostré a jasné obrazy i na velké vzdálenosti.
Hlavní vlastnosti:
- Zvuková schopnost: 5–25×
- Průměr objektivu: 56 mm
- Průměr hlavní trubice: 34 mm
- Zorné pole: přibližně 5.3–1.5 m @ 100 m
- Výstupní pupila: přibližně 11.0–2.3 mm
- Oční reliéf: přibližně 90 mm
- Parallax Adjustment: od ~10 m do nekonečna
- Click Value: přibližně 0.1 mrad (≈1 cm na 100 m)
- Optical Transmission: > 90 %
Vyrobeno v Německu podle nejvyšších standardů, 5–25×56 PM II je ideální volbou pro vojáky, policisty a soutěžní střelce, kteří vyžadují absolutní jasnost, mechanickou integritu a extrémní flexibilitu v jedné optice.
