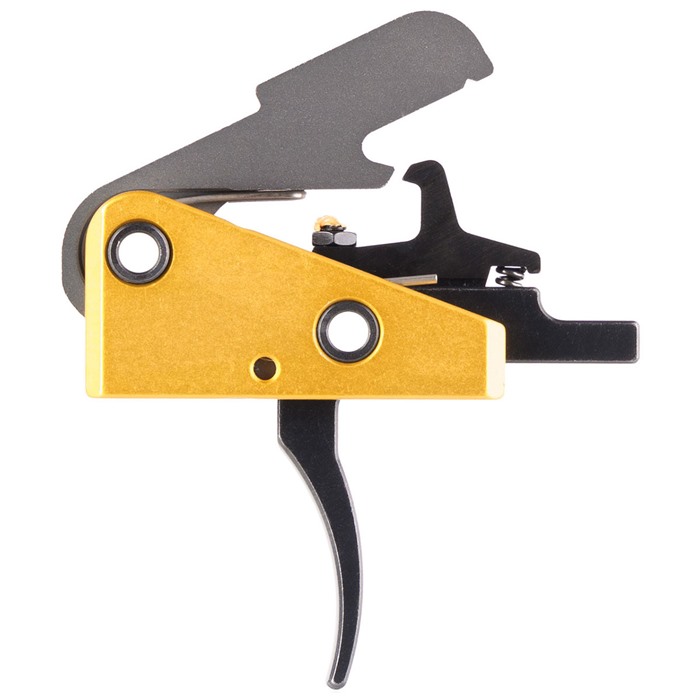

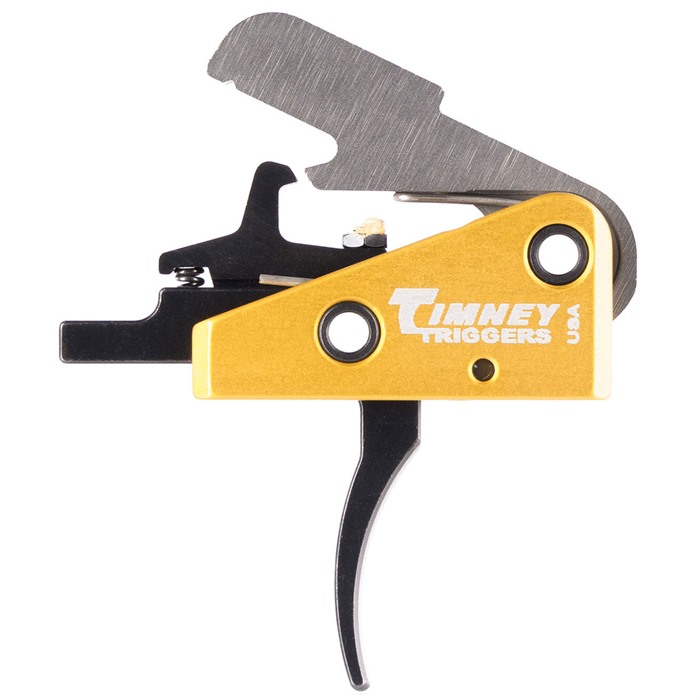

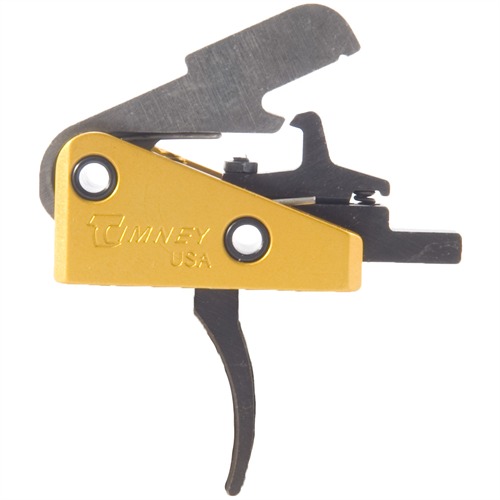

Self-contained module is ready to install in your small-pin AR and deliver an exceptionally smooth, crisp, creep-free single-stage trigger pull that feels more like a traditional bolt action than a combat rifle trigger. 100% drop-in—no gunsmithing, fitting, or adjusting required. All components are captive in the lightweight, aluminum alloy housing. Hammer is wire-EDM machined from S7 tool steel that combines hardness to resist wear with superior impact resistance to withstand heavy use without chipping or breaking. Other components are EDM cut from A2 tool steel, then heat treated to Rc 56-60 for long service life. Precision-ground engagement surfaces ensure superb reliability and a crisp, clean hammer release. Installs using your rifle’s original hammer/trigger pins; proprietary design eliminates pin walkout. Available with standard solid trigger shoe with choice of 3 lb, 4 lb. or 4.5 lb. pull weight.
SPECS: Hammer – S7 tool steel, natural color, Teflon-Nickel coated. Trigger/Internal Components - Hardened A2 tool steel, black oxide finish. Housing – 6061 T6 aluminum, gold anodized finish. Fits rifles with .154" diameter hammer/trigger pin holes. Will not fit Colt-manufactured AR-15s with sear block.
NOTE: For use in a polymer lower, a special plate is required which can be obtained directly from Timney at (623) 223-1111.
Obtain a super-smooth pull & crisp letoff in minutes
Introducing the AR-15 DROP-IN TRIGGER MODULE SOLID SHOE from TIMNEY, designed for enthusiasts who demand precision and performance in their firearms.
Product Description
This self-contained module is ready to install in your small-pin AR, delivering an exceptionally smooth, crisp, creep-free single-stage trigger pull that feels more like a traditional bolt action than a combat rifle trigger. It's 100% drop-in—no gunsmithing, fitting, or adjusting required.
All components are captive in the lightweight, aluminum alloy housing. The hammer is wire-EDM machined from S7 tool steel, combining hardness to resist wear with superior impact resistance to withstand heavy use without chipping or breaking. Other components are EDM cut from A2 tool steel, then heat treated to Rc 56-60 for long service life.
Precision-ground engagement surfaces ensure superb reliability and a crisp, clean hammer release. Installation is straightforward, using your rifle’s original hammer/trigger pins; our proprietary design eliminates pin walkout.
Specifications
- Hammer: S7 tool steel, natural color, Teflon-Nickel coated
- Trigger/Internal Components: Hardened A2 tool steel, black oxide finish
- Housing: 6061 T6 aluminum, gold anodized finish
- Compatibility: Fits rifles with .154" diameter hammer/trigger pin holes
- Note: Will not fit Colt-manufactured AR-15s with sear block
Available with a standard solid trigger shoe with a choice of 3 lb, 4 lb, or 4.5 lb pull weight. Upgrade your shooting experience with the TIMNEY AR-15 DROP-IN TRIGGER MODULE today!
